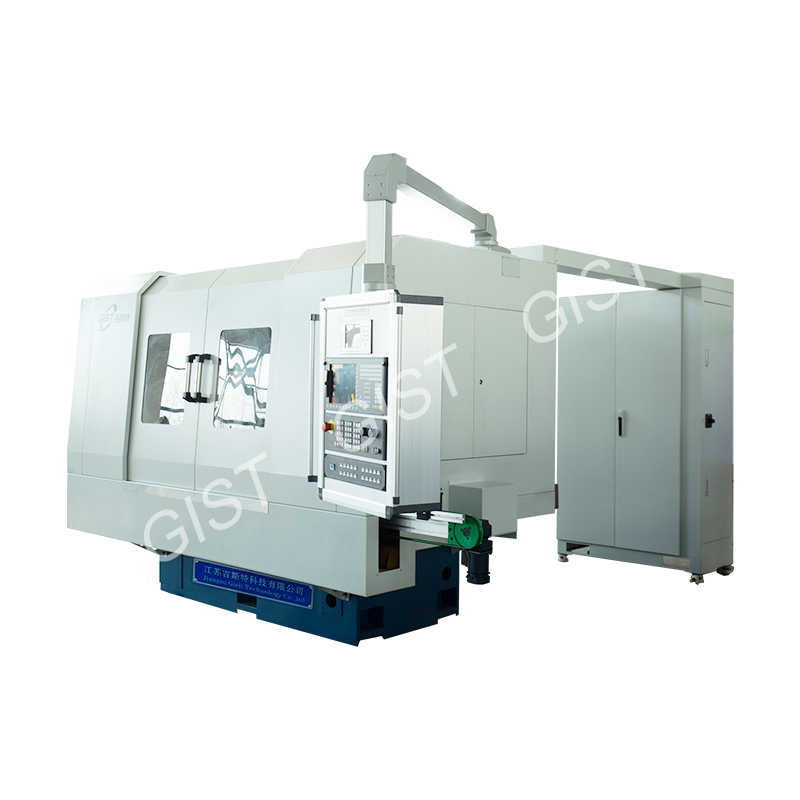

Ceramic CBN grinding wheel centerless grinding machine
Category:
Overview:
The company implements and implements various system management requirements, continuously innovating and improving to meet the comprehensive needs of customers.
Keyword:
Rod Centerless Grinder, Fine cone grinder
Product Details
Main parameters of the machine tool
Processing range | Rod diameter | Φ4mm~Φ12mm |
Disc diameter | Φ20mm~Φ55mm | |
Full length | 60mm~220mm | |
Machining accuracy | Roundness | 0.002mm |
Verticality | <0.03mm | |
Diameter | ±0.002mm | |
Roughness | Within Ra2.5 | |
Processing efficiency | Including loading | <7S/branch (Based on the rod diameter of 5mm) |
Abrasive materials | Ceramic CBN grinding wheel | Grinding wheel: φ600mm*200mm*304.8mm |
Guide wheel: φ310mm*200mm*177.8mm |
Main configuration of the machine tool
● NSK series angular contact ball bearings are adopted for both the grinding wheel spindle and the guide wheel spindle. The guide wheel has a double support structure, with high rotation accuracy and good stability.
● The machine tool is automatically fed for grinding, the grinding wheel is automatically trimmed and compensated, and the diamond wheel can be installed for trimming. The guide wheel dresser adopts manual feeding.
● By using the Siemens 828D numerical control system, it is possible to adjust parameters, feed speed, read shift output, cycle processing time, alarm information through the human-machine interface, and equip the Italian BS series anti-collision AE device.
